| 产地 | 浙江 |
|---|---|
| 售后服务 | 终身保固 |
| 经营模式 | 自产自销 |
| 品牌 | 欣睿激光 |
| 型号 | XR-FLP30-M6 |
● 激光通过光纤传输在光纤波导里受激振荡加大、损耗小、稳定性好;
Laser through optical fiber transmission in optical fiber waveguide stimulated oscillation increase, loss of small, good stability;
● 完美的软硬件配合与超高速的进口振镜，有效提高产能，打标速度可达10000mm/s;
The software and hardware perfect cooperation and ultra high speed import galvanometer, effectively improve the production capacity, marking speed of up to 10000mm/s;
● 整机体积更小巧，可做手持式和配置飞行在线打标;
The volume can be more compact, hand-held and configuration of flight line marking;
● 全风冷光纤激光器使用寿命长、10万小时无耗材 、低维护与运行成本低。
Full air cooling fiber laser with long service life, 100 thousand hours without supplies, low maintenance and operation cost.
适用材料 Application

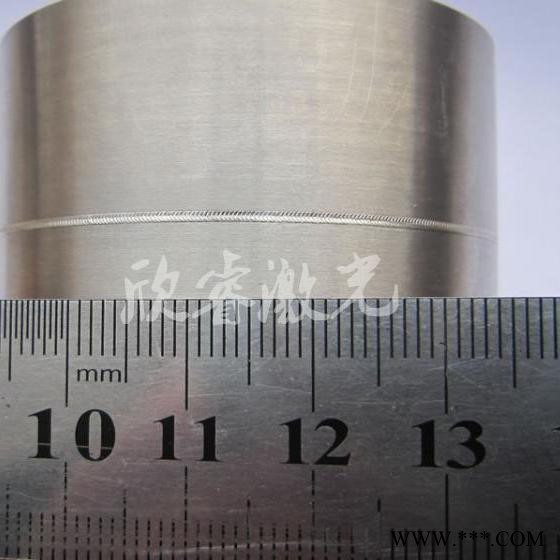

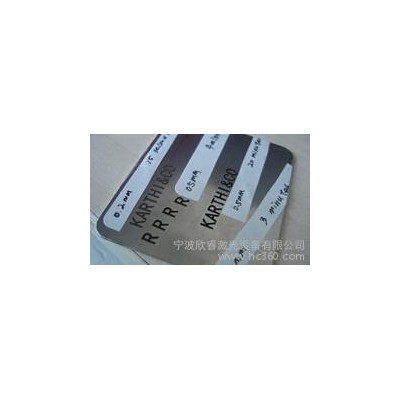

应用于对深度、光滑度、精细度要求较高的领域，如钟表、模具行业、键盘、集成电路（IC）、汽车、高档按键等。
It is widely used in fields that have high requirement on depth, smoothness and fine, such as clock and watch, mould, bitmap marker, etc.
技术参数technical parameter
|
| XR-FLM10 | XR-FLM20 | XR-FLM30 | XR-FLM50 | XR-FLM100 | |||||||
| 最大激光功率 Max. laser power | 10W | 20W | 30W | 50W | 100W | |||||||
| 激光波长 Laser wavelength | 1064nm | |||||||||||
| 调Q频率 Frequency | 20KHz—100KHz | |||||||||||
| 雕刻范围 Engraving range | 100X100mm标配(50mm×50mm -300mm×300mm) | |||||||||||
| 光束质M? Laser beam quality | <2 | <3 | ＜4 | |||||||||
| 雕刻线速 Line speed | ≤10000mm/s | |||||||||||
| 最小线宽 Minimum line width | <0.012mm | <0.015mm | ＜0.018mm | |||||||||
| 雕刻深度 Marking depth | <0.2mm | <0.4mm | <0.6 mm | <1.0mm | ＜1.6mm | |||||||
| 重复精度Repeating precision | ±0.002mm | |||||||||||
| 整机功率 Power consumption | 400W | 500W | 700W | 1000W | 1800W | |||||||
| 电力需求 Power supply | AC220V/50Hz/5A | |||||||||||
| 冷却系统 Cooling system | 风冷（Air cooling） | |||||||||||
