| 产地 | 上海 |
|---|---|
| 产品认证 | CCC |
| 电动机功率 | 80KW |
| 工作长度 | 950 |
| 规格 | 常规 |
| 辊筒线速度 | 25m/min |
| 外形尺寸 | 1100*480*315cm |
| 重量 | 25000kg |
| 品牌 | 龙驭 |
| 型号 | 六辊PVC硬片压延压光生产线 |
| 辊数 | 六辊 |
| 辊筒工作直径 | 320 |
| 辊距 | 40mm |
主要特点

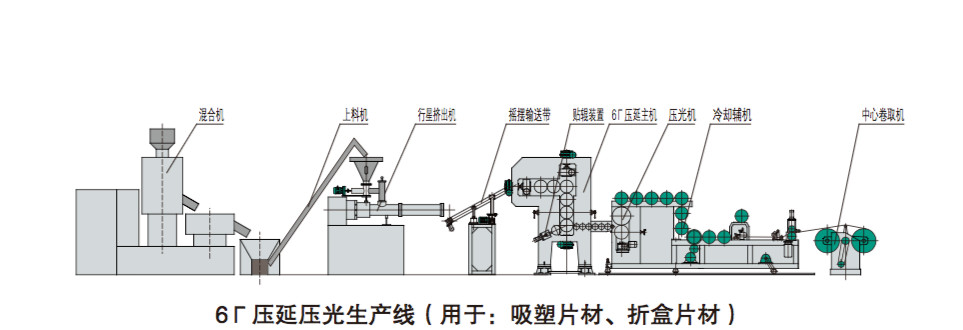

六辊PVC硬片压延压光生产线适用于大产能厚规格的无表面流纹的高质量硬质PVC片材。其中压延机组由异径六辊压延机、剥离送料机构、压光机和冷却辅机组成，压延辊筒采用变频调速电动机独立驱动，配以专用硬齿面减速机，具有单独调速和跟踪联动调速功能。
压延制品厚度 0.20-0.85mm宽度 400-720mm
Main Features
Six roller (different diameter) non flow mark rigid PVC film calenderingproduction line with super clear unit is suitable for producing highcapacity and thick non flow mark PVC rigid film. The calendaringsystem is composed of six roller calender (different diameter), take offerroller device, conveying device, super clear unit, cooling roller device.Calender roller is independently driven by variable-frequency andvariable-speed motor, with specialized hard gear surface speedreducer, has the function of separate speed regulation and trackinglinkage speed regulation
