| 产地 | 上海 |
|---|---|
| 产品别名 | 激光切割机 |
| 电流 | 交流 |
| 电源电压 | 220V |
| 定位精度 | 0.01mm |
| 动力形式 | 激光 |
| 功率 | 2.5kw |
| 控制方式 | 数控 |
| 认证 | CE |
| 用途 | 切割,雕刻,裁剪设备 |
| 执行质量标准 | 行标 |
| 作用对象 | 非金属材料 |
| 品牌 | 远赞 |
| 型号 | LCS1610 |
| 最大线割速度 | 1000mm/s |
| 快进速度 | 36000mm/min |
| 切割头 | 激光头 |
| 最大刻线深度 | 20mm |
技术参数 Specification
| 设备机型 | LCC | LCS | |||||
| 产品型号 | 1325 | 1826 | 1610 | 1810 | 1814 | ||
| 有效幅面Working area | 1300*2500 | 1800*2600 | 1600*1000 | 1800*1000 | 1800*1400 | ||
| 送料方式 | 静态 | 自动送料 | |||||
| 激光功率Laserpower | 80/100/120/150/180W | ||||||
| 激光类型Lasertype | CO2封离式玻璃激光器/CO2 Seal type glass laser | ||||||
| 定位精positionalaccuracy | ≤±0.01mm | ||||||
| 图形格式Supportformat | PLT,AI,BMP,DST,DXF | ||||||
| 支持软件Support software | CORELDRAW,PHOTOSHOP,AUTOCAD，绣花软件，服装CAD | ||||||
| 工作电压Voltage | 220V±10% 50Hz（60Hz） | ||||||
| 整机功率Power | ≤3500W | ≤4000W | ≤3000W（不含外置设备） | ||||

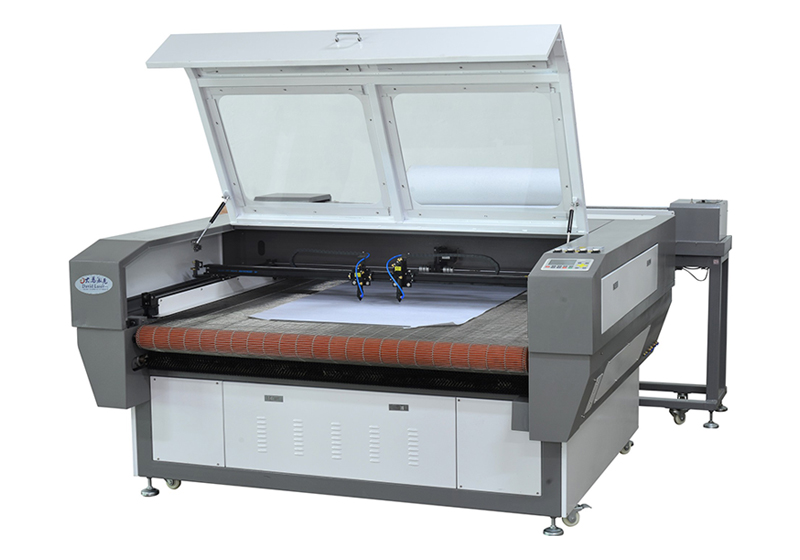

以上设备可根据客户行业不同可选配双激光头或多激光头，且激光头间距可选装手动调节或电动调节。
The above equipment can be equipped with two ormore laser heads according to different customer industries, and the distancebetween laser heads can be adjusted manually or electrically.
机型特点
l 精密钢管焊接床身，龙门结构。采用高精度导轨运行，确保设备在高速运转时平稳、不抖动，从而
保证了设备的精度及寿命。
l 独立风箱设计，吸附效果极好，并可及时抽走烟尘。

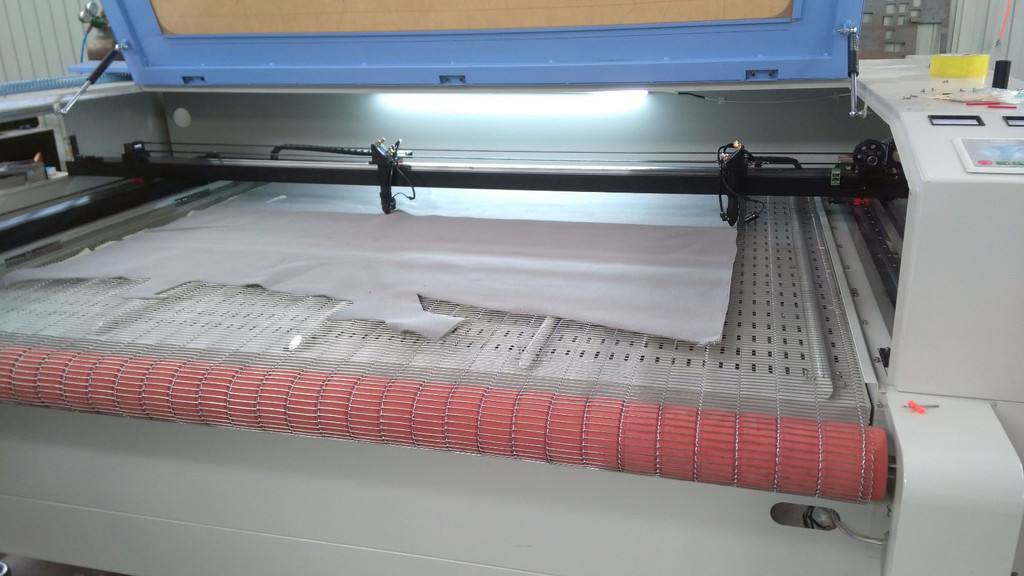

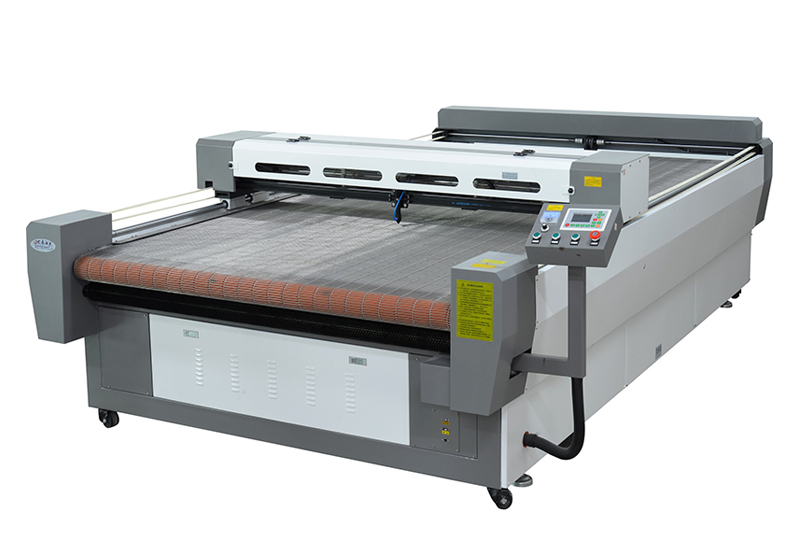

l 专门针对卷材，我公司多款自动纠偏送料机，供各种行业、各种材料所选择使用。实现真正意义上的全自动送料功能，使送料、切割、收料全自动完成，形成完全自动化操作。
l 先进的控制系统，具有断点接续、脱机操作功能。更优化的运动控制算法，平稳的加减速设计，动作迅捷平稳，配合激光能量自动补偿功能，使工作效率大大提升。
Typecharacteristics
l Precision steel pipe welding bed, gantry structure. The high precisionguide rail is used to ensure that the equipment runs smoothly and withoutshaking at high speed.
l It guarantees the accuracy and life of the equipment.
l Independent bellows design, excellent adsorption effect, and timely smokeand dust removal. Speciallyfor coil, our company has many automatic deviation correction feeders forvarious industries and materials. Realize the full automatic feeding function inthe true sense, so that feeding, cutting and collecting can be fully automated,forming a fully automated operation.
l Advanced control system, with breakpoint connection, off-line operationfunction. Optimized motion control algorithm, smooth acceleration anddeceleration design, fast and smooth movement, combined with laser energyautomatic compensation function, make the work efficiency greatly improved.
产品应用
适用于各种纺织服装面料及柔性、弹性材料;真丝面料、纯棉面料、装饰面料、涤纶面料、医用布料、化纤布料、防水布料、真皮、人造革、装饰革、包装革、软绵革、纸板、地毯、软包装材料等。
Product application
Suitable for all kinds of textile and apparel fabrics, flexible and elastic materials,silk fabrics, cotton fabrics, decorative fabrics, polyester fabrics, medical fabrics, chemical fiber fabrics, waterproof fabrics, leather, artificial leather, packaging leather, soft cotton leather, cardboard, carpet, soft packaging materials, etc..
