| 加工长度 | 2000 |
|---|---|
| 加工高度 | 300 |
| 产地 | 东莞 |
| 产品类型 | 全新 |
| 产品认证 | CCC |
| 电源电压 | 380V |
| 电源类型 | 交流电源 |
| 额定电压 | 380V |
| 额定输入功率 | 10KW |
| 高度 | 2000 |
| 工作形式 | 全自动 |
| 规格 | 2000*2000*300 |
| 空载转速 | 24000rpm |
| 控制方式 | 闭环控制 |
| 适用范围 | EVA内衬雕刻泡棉内衬雕刻酒瓶雕刻 |
| 执行标准 | 国标 |
| 重量 | 2500 |
| 回转数 | 24000rpm |
| 铣刀直径 | 3.175 4 6 8 10 12 12.7 |
| 主轴钻速 | 24000rmp |
| 套爪夹头 | ER20 |
| 最大加工宽度 | 2000 |
| 品牌 | 麦克德 |
| 型号 | MKD-2020 |
| 加工定制 | 是 |
机型解读Model interpretation

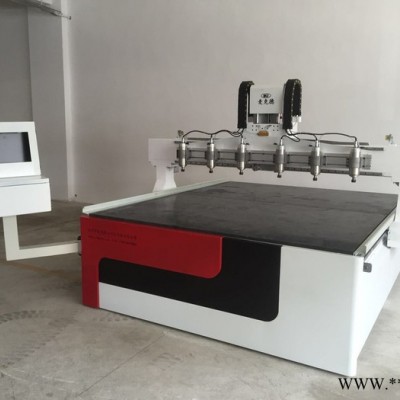

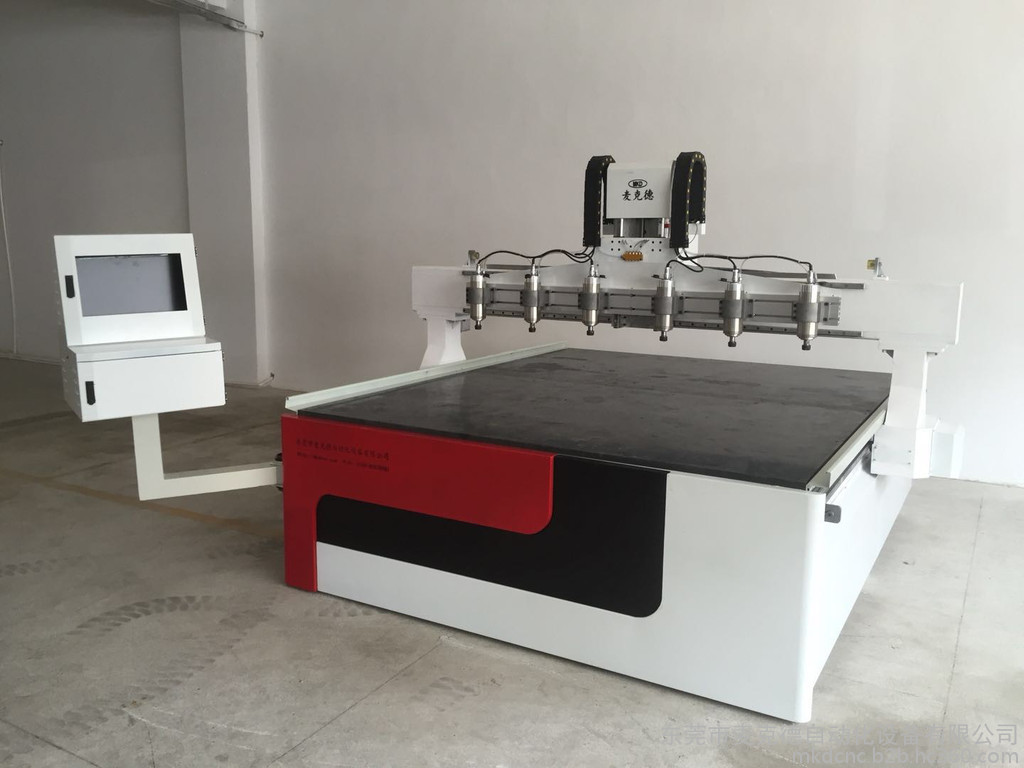

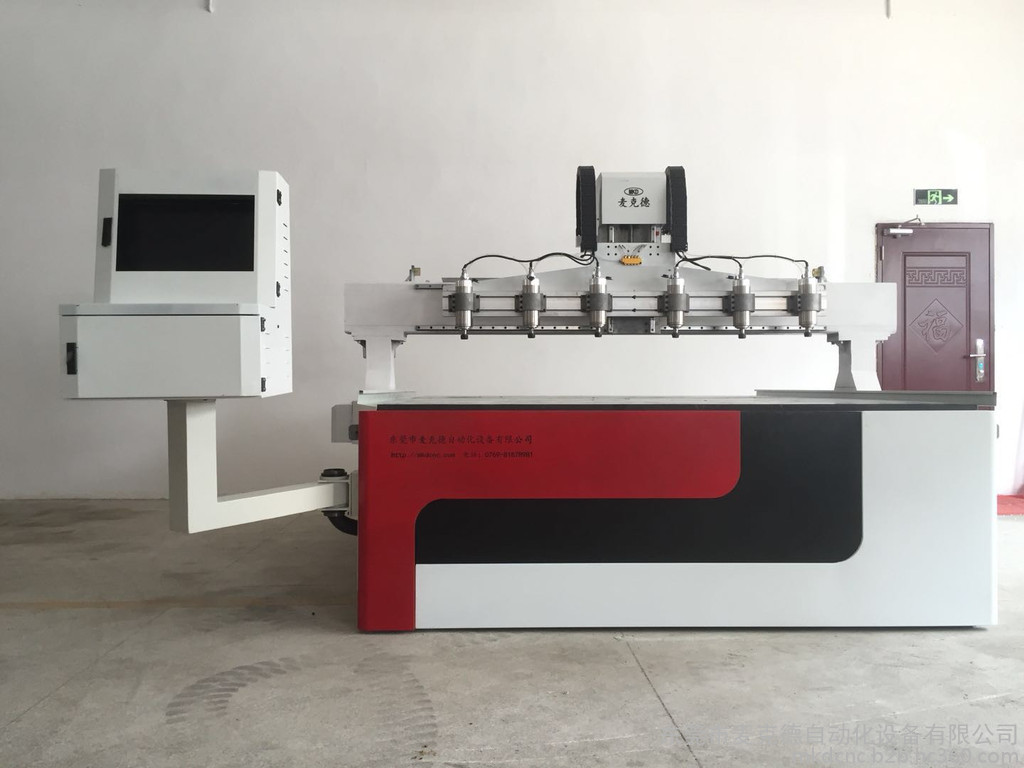

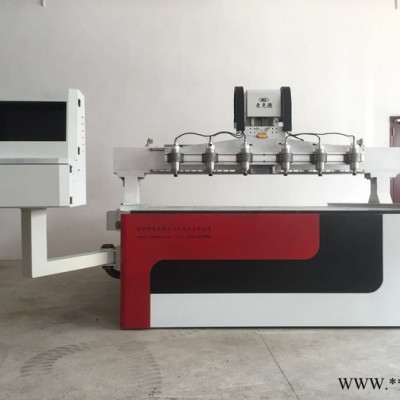

Mkd-1820-E系列设备是一款包装材料雕刻设备，三轴配有防尘罩设计，优先防止加加工过程中水、粉尘、杂物等飞溅到轨道和其他传动件上，以免生锈和人员撞伤。
Mkd-1820-E series equipment is a packingmaterial engraving equipment. The three axis is equipped with dust coverdesign. It is a priority to prevent the splashing of water, dust and sundriesto track and other transmission parts during the processing, so as to avoidrust and personnel bruising.
性能特点Performance features
1. 钢架焊接震动时效及热处理加硬，经CNC平整加工，确保机床刚性耐用不变形；
The steel frame is welded with vibration aging and heattreatment hardening, which is processed by CNC flat to ensure rigidity,durability and non-deformation of the machine tool
2. 进口高精度导轨、齿条，原厂驱动及电机，机器运行稳定、速度快、工作噪音小；
imported high-precision guide rail and rack, originalfactory drive and motor, stable operation, fast speed and low working noise
3. 采用品牌电器元器件、高柔性屏蔽拖链电缆线，使其抗干扰能力强、故障率极低。
use brand electrical components and high flexible shielded dragchain cable to make it strong anti-interference ability and low failure rate.
适用行业Apply to industry

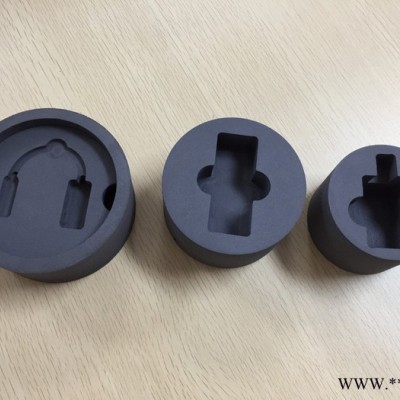

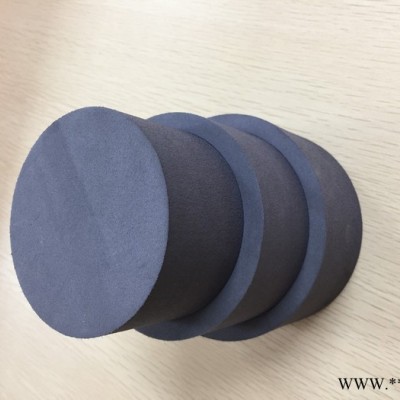

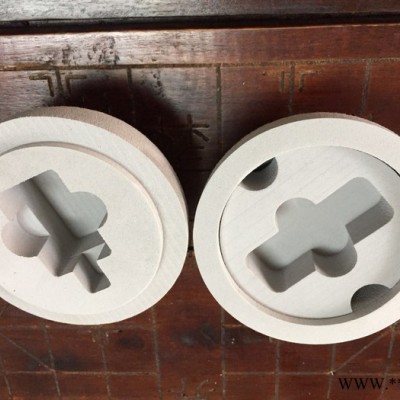

包装材料雕刻机广泛应用于EVA、海绵、泡棉、高发泡、珍珠棉、等包装材料艺术品加工。
Packaging material engraving machine iswidely used in EVA, sponge, foam, high foaming, pearl cotton, and otherpackaging materials.
技术参数Technical parameters
| 设备型号 | Equipment model | MKD-1820-E | ||
| 工作行程（X、Y、Z） | Work schedule (X, Y, Z) | 1800*2030*180mm | ||
| 平台尺寸 | Platform size | 1850*2500mm | ||
| 空程速度 | Idle speed | 15000mm/min | ||
| 加工速度 | Processing speed | 8000mm/min | ||
| 主轴转速 | Spindle speed | 24000rpm | ||
| 主轴功率 | Spindle power | 2.2KW*8个 | ||
| 重复定位精度 | Repeated positioning accuracy | ±0.15(300mm) | ||
| 加工精度 | The machining accuracy | ±0.08(300mm) | ||
| 出力轴 | The output shaft | 雷赛高速步进电机(可选伺服) | ||
|
运动配置（龙门动） Sportsconfiguration (gantry movement)
| X、Y高精密斜齿，台湾上银25导轨（银泰） X, Y high precision helical teeth, Taiwan HIWIN（PMI） 25 guide linear | |||
| Z台湾TBI丝杆，台湾上银25导轨（银泰） Z Taiwan TBI ball screw, TaiwanHIWIN（PMI） 25 guide linear | ||||
| 工作电源 | Working power supply | AC-220V/380V±5% 50~60Hz | ||
| 整机重量 | whole machine weight | 2500KG | ||
| 外形尺寸 | Overall dimensions | 2500*2450*1680 | ||
