首页 > 供应产品 > 供应**金盛JS--1390有机玻璃亚克力激光切割机

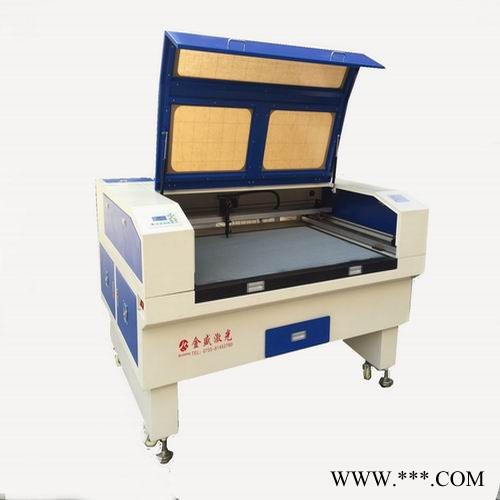

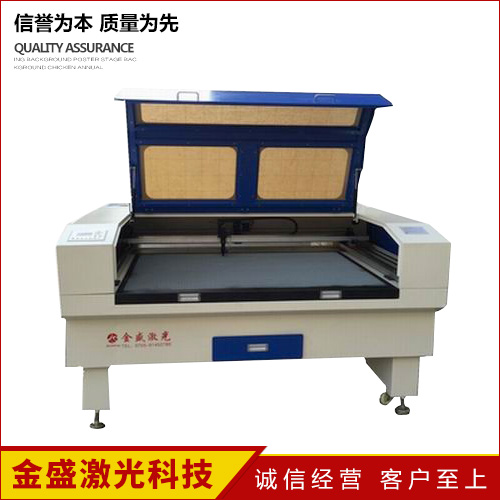

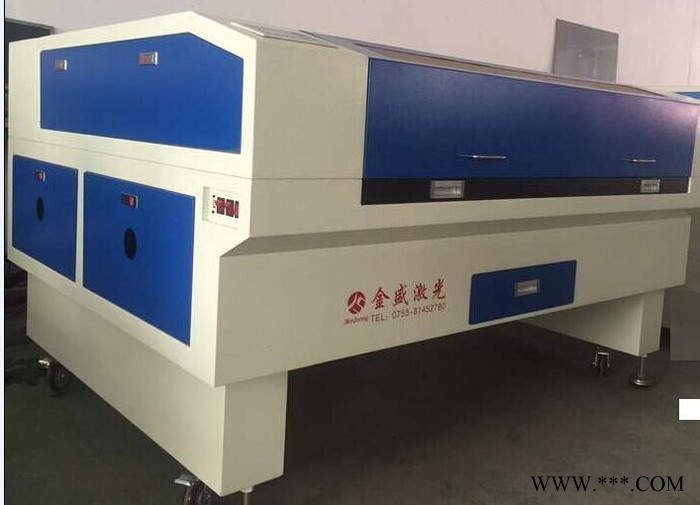

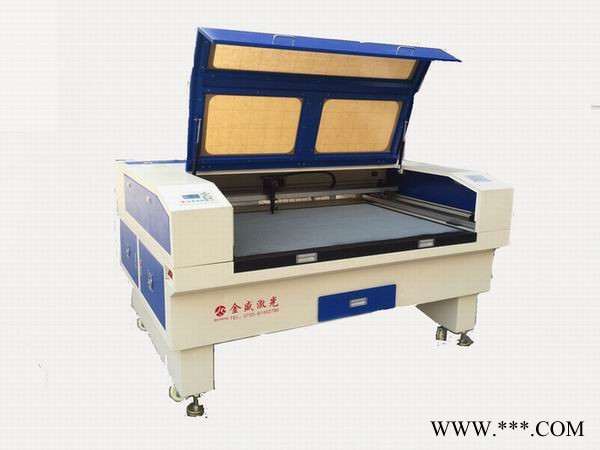

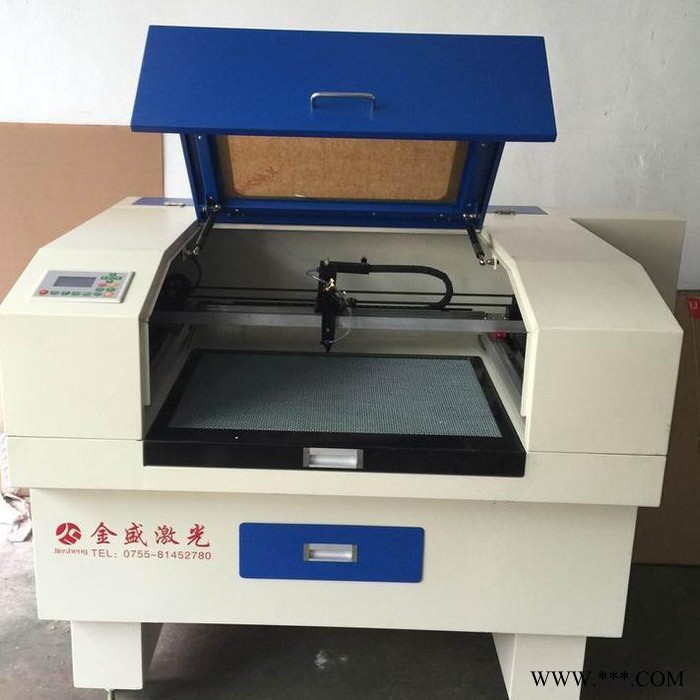

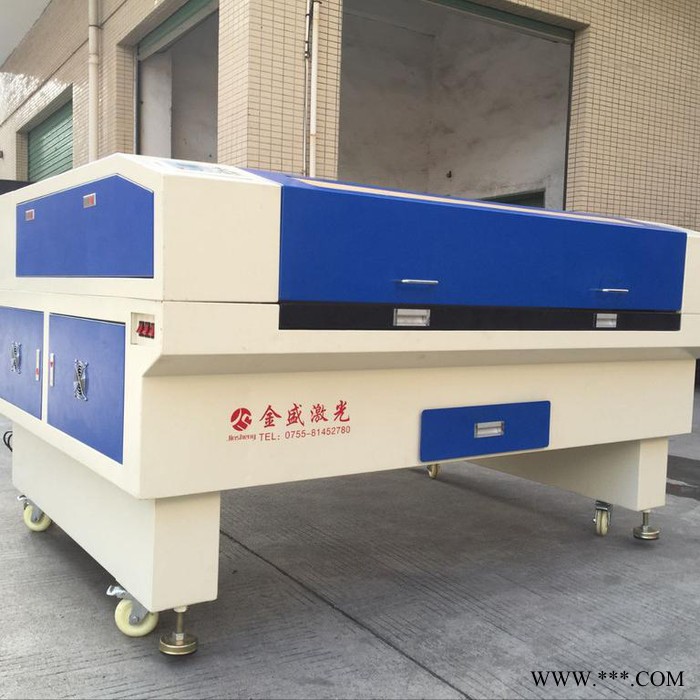

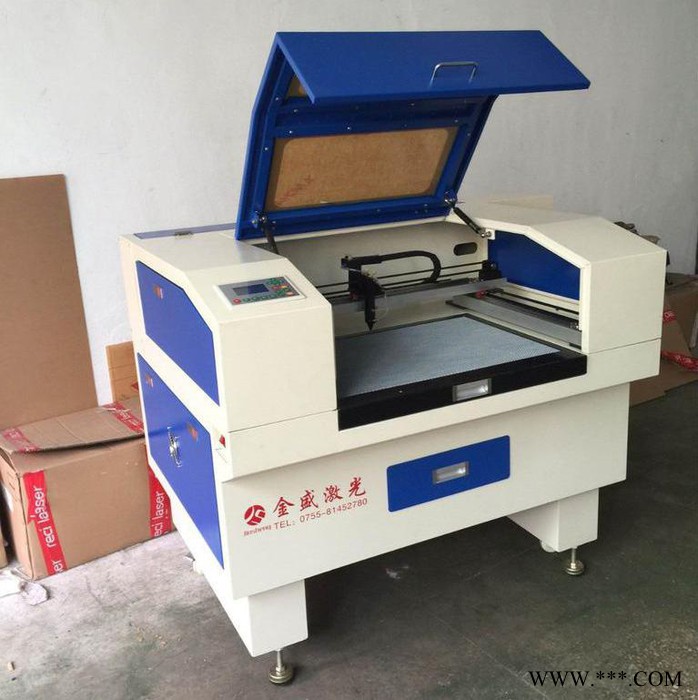

供应**金盛JS--1390有机玻璃亚克力激光切割机
产品: 浏览次数:892供应**金盛JS--1390有机玻璃亚克力激光切割机
品牌: 金盛激光科技有限公司
产品用途: 激光切割
质保时间: 2040-01-26
单价: 2180.00元/台
最小起订量: 2 台
供货总量: 10 台
发货期限: 自买家付款之日起 天内发货
有效期至: 长期有效
最后更新: 2021-12-29 10:52

详细信息
产品用途 激光切割
质保时间 2040-01-26
认证 IOS9002
整机功率 300kw
别名 激光雕刻切割机
产地 深圳
电流 交流
电源电压 220V
雕刻速度 300
定位精度 0.1mm
动力类型 激光
额定功率 60W
高度 1200MM
工作电压 110V
工作形式
功率 10KW
激光功率 3kw
控制方式 数控
类别 广告设备
冷却方式 水冷
适用材质 皮革
适用范围 花岗岩、大理石、青石、砂岩、玻璃等石材浮雕、刻字及人像等影雕加工
用途 切割
执行质量标准 企业标准
作用对象 塑料
品牌 金盛激光
型号 金盛JS-1209
最大线割速度 800mm/s
快进速度 60000mm/min
切割头 激光头
最大刻线深度 30mm
质量认证 CCC



            JS-精密切割机





                            JS1390切割机    性能参数及技术指标




                            激光器功率




                            80W/100W/130W




                            激光器种类




                             封闭式二氧化碳激光器




                            光路形式




                            飞行光路(工作台不动,激光头移动)




                            传动方式




                             采用强动力无须保养得细分微步步进马达,双方向进口精密滚珠丝杆传动,丝杆和导轨由台湾进口。




                            切割材料及厚度




                             木板6、9、15MM,PVC胶板,亚克力,布料,皮革等非金属材料




                            激光功率和耗电




                             最大输出功率130瓦,输出功率范围1瓦至130瓦,耗电每小时1.5度电




                            有效切割幅面




                            工作面积:1300*900M




                            切割速度




                             0-3000mm/min




                            数控面板




                             液晶显示屏,中英文操作菜单,轻触按键




                            传输端口及输入输出格式




                             USB连接,脱机操作,设备可以单独摆放,DXF/PLT




                            指令系统




                             国际标准:兼容CDR,CAD等各类软件




                             定位精度




                             ±0.05mm




                            控制软件




                             嘉洛激光精密刀模切割系统(中英文版)




                            环境温度




                            5℃-35℃




                            冷却水水温




                            5℃-30℃




                             重复定位精度




                             ±0.02mm




                            冷却水




                             无杂质纯净水




                            供电电源




                            单220V±5% 50HZ 10A




                            保护气体




                             干燥无油空气




                            相对湿度




                            ≤80%


1、激光打样:可对实际纸样材料进行盒型设计打样,相对机械打样,由于没有接触压力,更精确更快捷,且设备成本、日常使用成本比机器打样机更低;
2、激光绘图:可在绘图纸上打印单图或大幅面排版图,可节省一台几万元的大幅面绘图仪,且因打印图纸与实际刀模切割是同一台机,避免了不同设备之间精度不一致导致的误差,故精确度会更高;
3、激光切割:采用专利技术,可切割制作5mm、6mm胶板刀模,可切割0.45、0.53、0.71、1.05、1.42mm等任意宽度切缝;
4、投资极少:相对功能相似的进口几百万元、国产近百万元的激光刀模切割机,本产品只需要十余万元,投资极少,风险极少、回报极快,正常情况三个月到半年即可收回投资;
5、效率高:切割速度可达500米/天(6mm胶板),单机既可以满足绝大多数个体刀模厂及包装印刷厂的需求;
